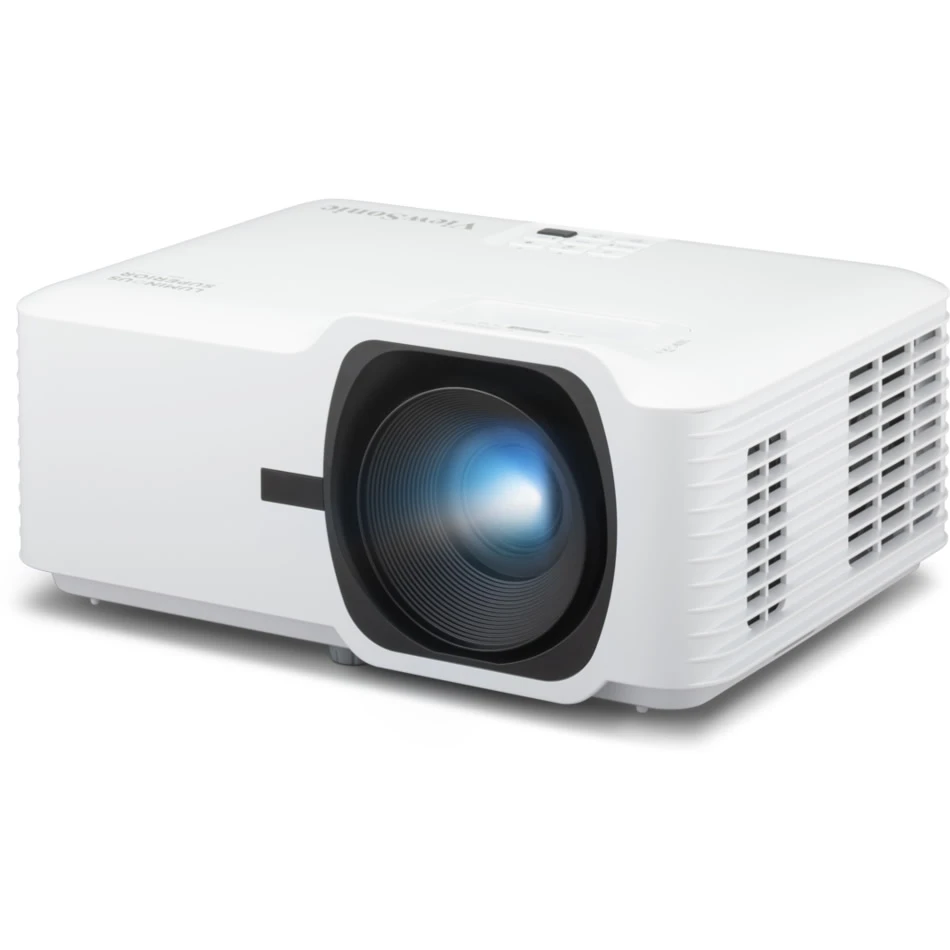

ViewSonic LSD400HD 4000lm Full HD Laser Projector
SKU: LSD400HD
Specifications
- 1080p 1920 x 1080 16:9
- 4000 ANSI Lumens
- 3,000,000:1 Contrast
- 3.0kg Weight
- 32 / 27db(eco) Fan Noise
- 3 Year Warranty
- 3 Years/10,000hrs Laser Warranty
- Est. Laser Life up to 30,000hrs
Key Features
- 2x HDMI Connections
- Horizontal & Vertical Keystone
- Powerful 15W Speaker
- 360° Installation
- Portrait Projection
- IP6X Dust Resistant Optical Engine
ViewSonic LSD400HD 4000 Lumens Full HD Laser Projector
The ViewSonic LSD400HD - a powerhouse 4,000 ANSI lumen laser projector that delivers crisp Full HD 1080p visuals with breathtaking clarity, even in lit rooms. Its advanced laser light source guarantees 30,000 hours of maintenance-free operation, vibrant colors, and consistent performance while slashing running costs and eliminating lamp replacements. With 3,000,000:1 contrast, HDR10 support, effortless H/V keystone correction, 360° projection, and seamless network control, it installs anywhere and performs everywhere — classrooms, boardrooms, or retail spaces. Instant on/off, built-in audio, and rock-solid reliability make it the smartest upgrade for professionals who demand impact without the hassle. Step up to superior projection today.
Optional Accessories
Features
- 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip DLP technology
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Up to 59% less power consumption than competing lamp projectors
- Installation flexibility: H/V keystone, 4 corner adjustment, and 360° projection
OVERVIEW
The LSD400HD is part of ViewSonic's Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 59% power consumption than competing lamp projectors. Delivering ultra-large projections up to 300” in 1080p resolution, this projector leverages high native contrast from a 0.65” DMD chip with DLP technology. Equipped with a 1.1x optical zoom, H/V keystone & 4 corner correction, and 360° projection, the LSD400HD supports flexible installation options, making it an excellent choice for meeting rooms, classrooms, and golf simulation setups.

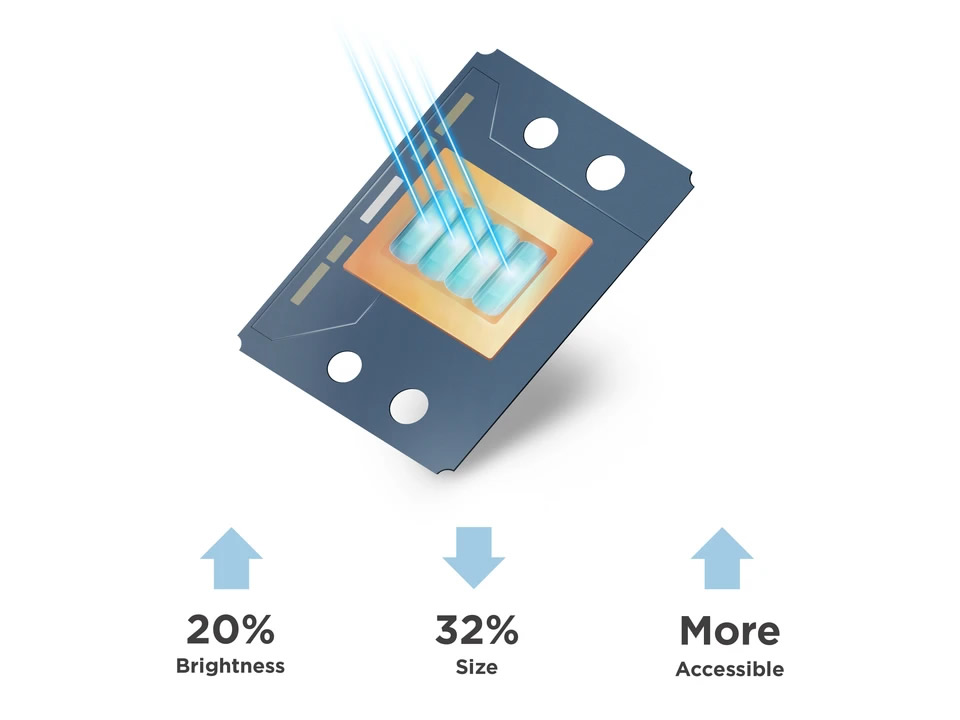

Bright, Compact, Durable
The LSD400HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology

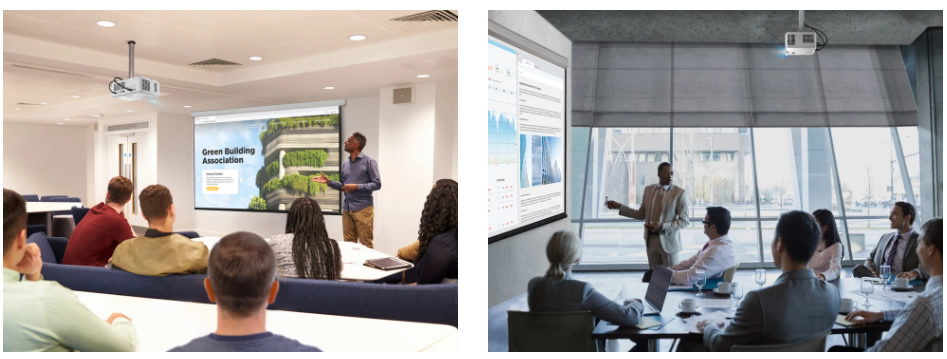

Bright Images for Large Venues
Delivering 4,000 ANSI Lumens, the LSD400HD provides vibrant and sharp projection in 1080p FHD for meeting rooms, classrooms and golf simulation setups.
4,000 ANSI Lumens, 1080p FHD

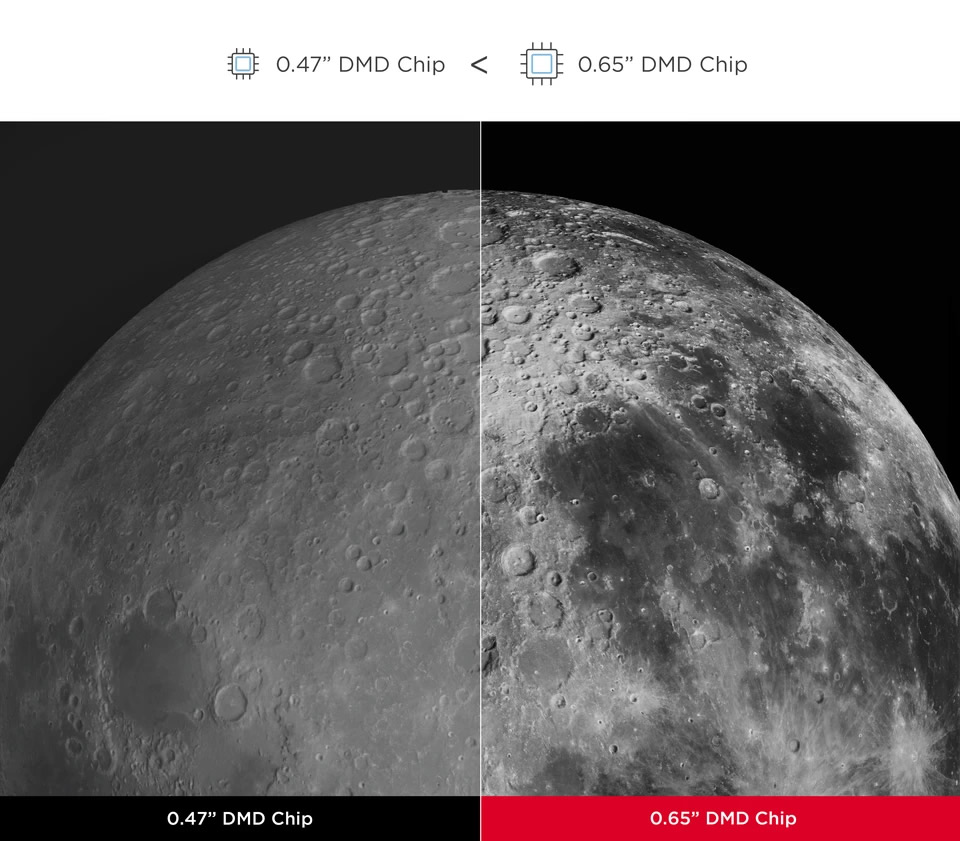

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LSD400HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
0.65” DMD Chip | High Native Contrast Ratio
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Up to 300”

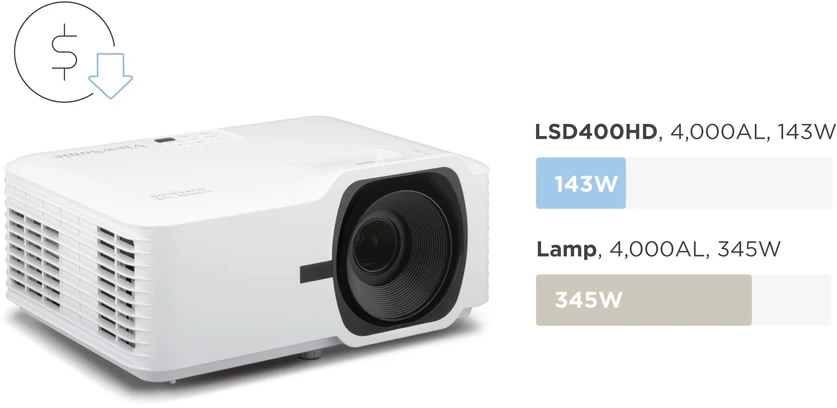

Save on Costs and Energy
With its advanced lamp-free light source, the LSD400HD offers a highly energy-efficient and cost-saving display solution by consuming up to 59% less power than competing projectors.
Less Power Consumption

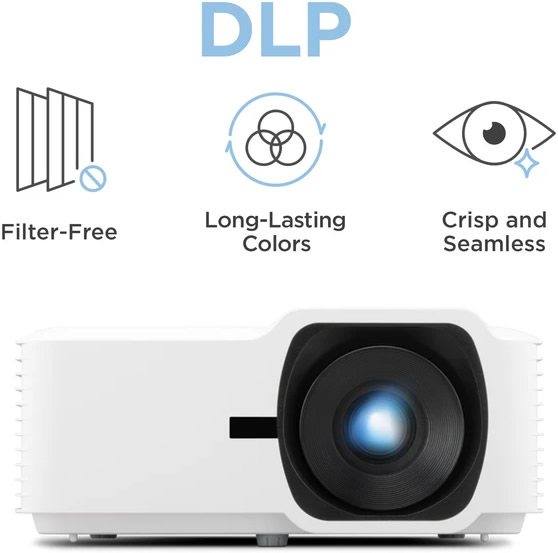

Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LSD400HD maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design (IP6X), it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Filter-free, Sealed Engine (IP6X)

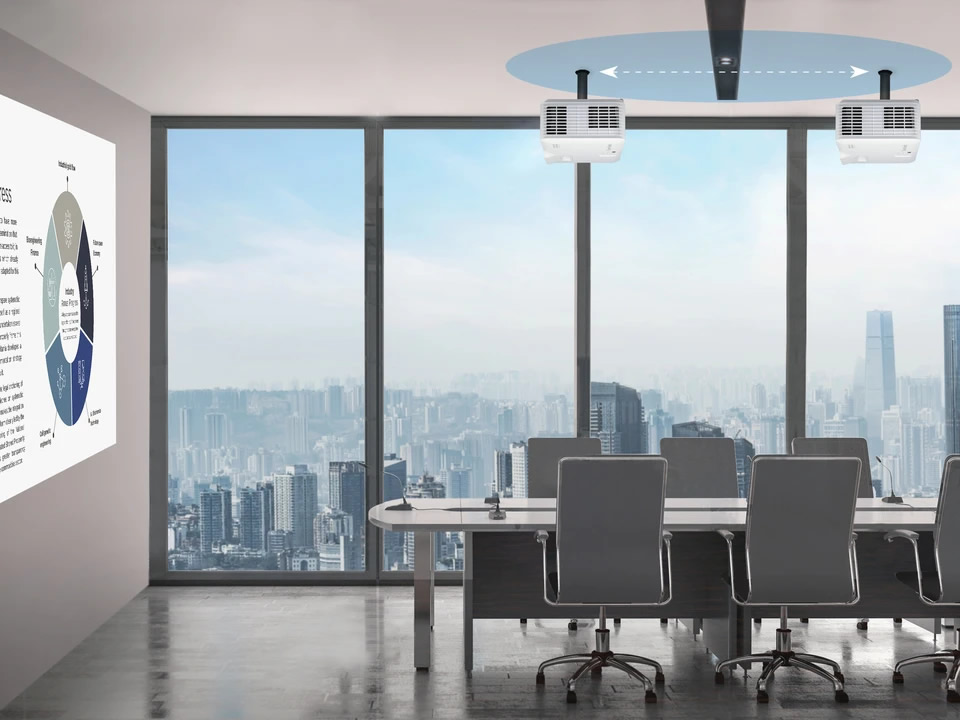

Enhanced Installation Flexibility
Equipped with a 1.1x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
1.1x Optical Zoom

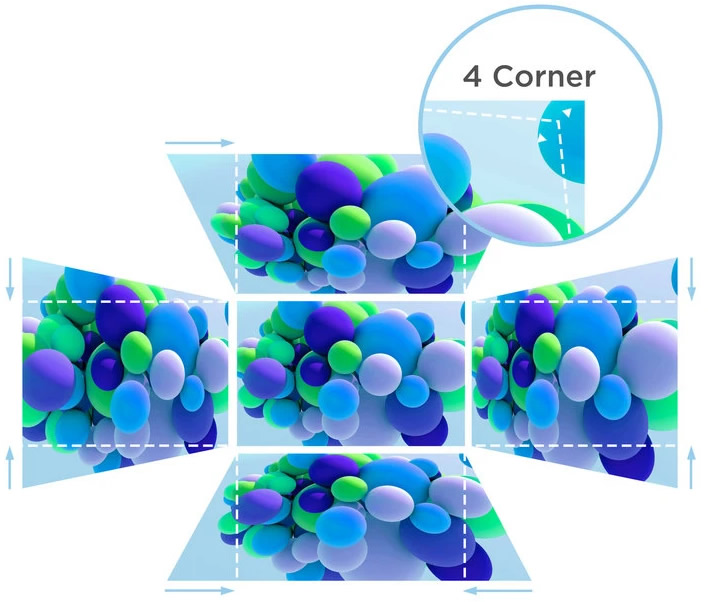

Get Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction | 4-corner Adjustment

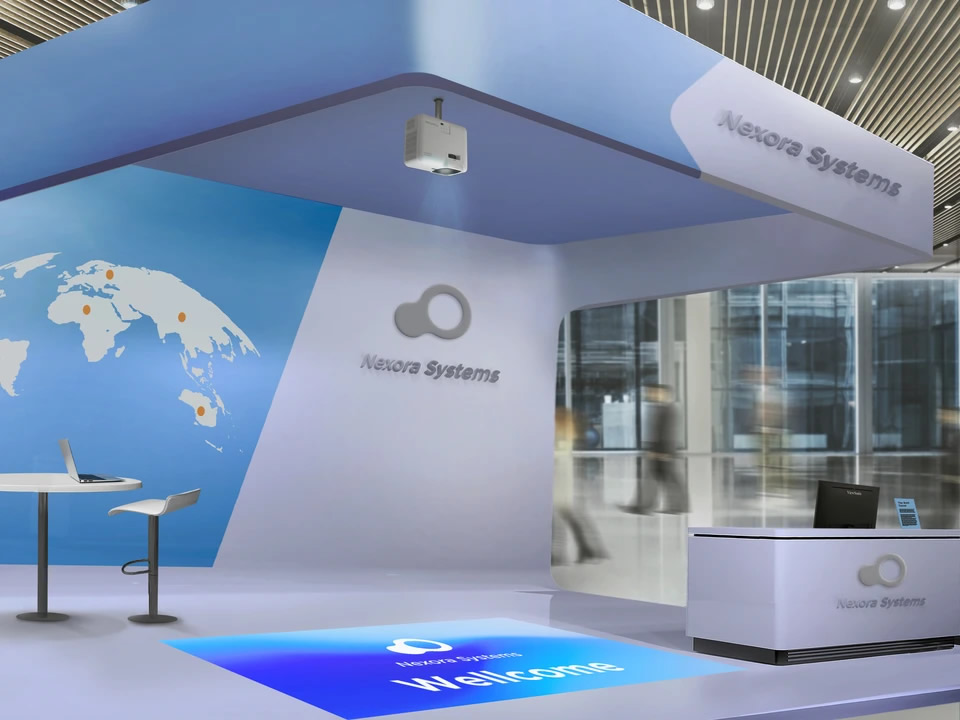

Versatile Creative Applications
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic's advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible
Golf Color Mode

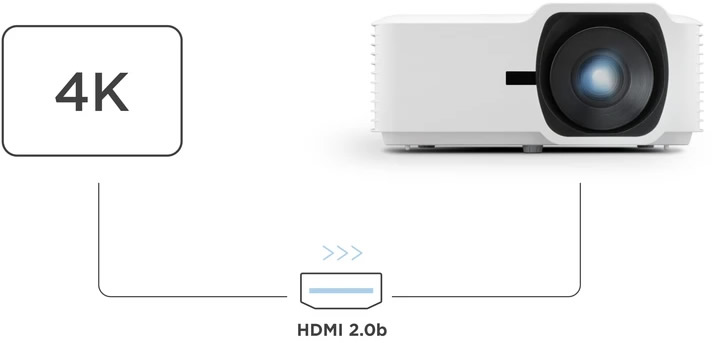

HDR / HLG / 4K UHD supported by HDMI 2.0b
The LSD400HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.

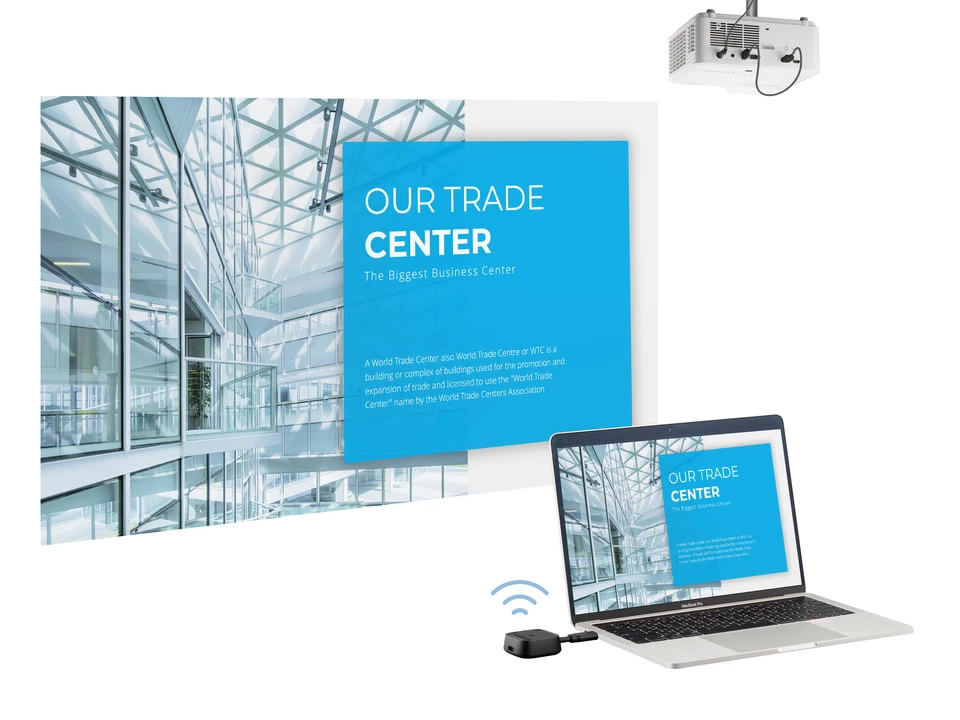

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *Wifi Adapter sold separately

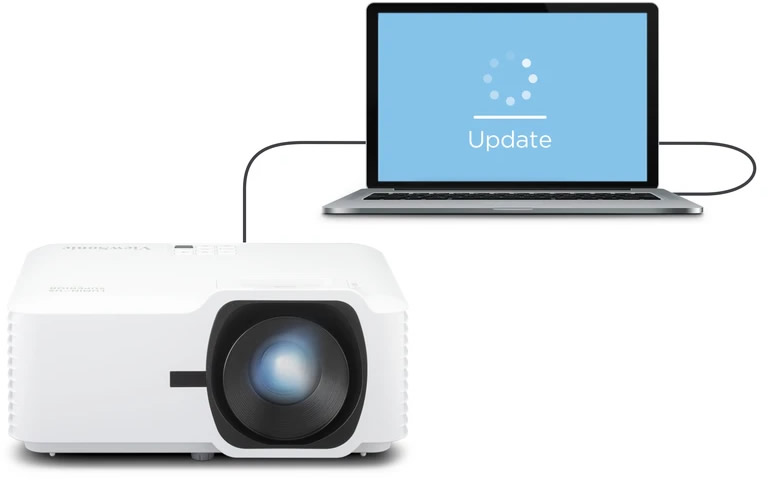

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.
| Native Resolution: | 1920x1080 |
|---|---|
| DMD Type: | 0.65" 1080P |
| Brightness: | 4000 (ANSI Lumens) |
| Centre Brightness: | 4400 (ANSI Lumens) |
| Contrast Ratio: | 3000000:1 |
| Display Color: | 1.07 Billion Colors |
| Light Source Type: | Laser Phosphor system |
| Light Source Life (hours) | up to 20,000 (Normal Mode) |
| Light Source Life (hours) | up to 30,000 (SuperEco Mode) |
| Lens: | Lens: F=2.5-2.67, f=21.86-24mm |
| Projection Offset: | 132%+/-10% |
| Throw Ratio: | 1.48~1.62 |
| Optical Zoom: | 1.1X |
| Digital Zoom: | 0.8x-2.0x |
| Image Size: | 30-300" |
| Throw Distance: | 0.98-10.76m (100"@3.28m) |
| Keystone: | H:+/-30° , V:+/-30° |
| Audible Noise (Normal): | 32dB |
| Audible Noise (Eco): | 27dB |
| Input Lag: | 16.7ms |
| Resolution Support: | VGA(640 x 480) to 4K UHD(3840 x 2160) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency: | 15K-135KHz |
| Vertical Scan Rate: | 24-120Hz |
| Inputs | |
| HDMI: | HDMI: 2 (HDMI 2.0, HDCP 2.2) |
| Output | |
| Audio-out (3.5mm): | 1 |
| Speaker: | 15W |
| USB Type A (Power): | 1 (5V/ 1.5A) |
| Control | |
| RS232 (DB 9-pin male): | 1 |
| USB Type A | 1 (share with USB A Output) |
| Others | |
| Power Supply Voltage: | Input: 100~240V Output: 19.5VDC / 9.23A |
| Power Consumption: | Normal: 143W, Standby: <0.5W |
| Operating Temperature: | 0~40℃ |
| Net Weight: | 3.0 |
| Dimensions (WxDxH) with Adjustment Foot: | 286x216x129mm |
| OSD Language: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages |
| Standard Accessory | |
| Power Cord: | 1 |
| Remote Control: | 1 , (w/ laser pointer) |
| QSG: | Yes |
Remote Control

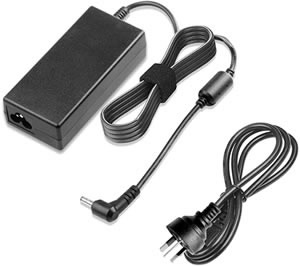

Power Adapter

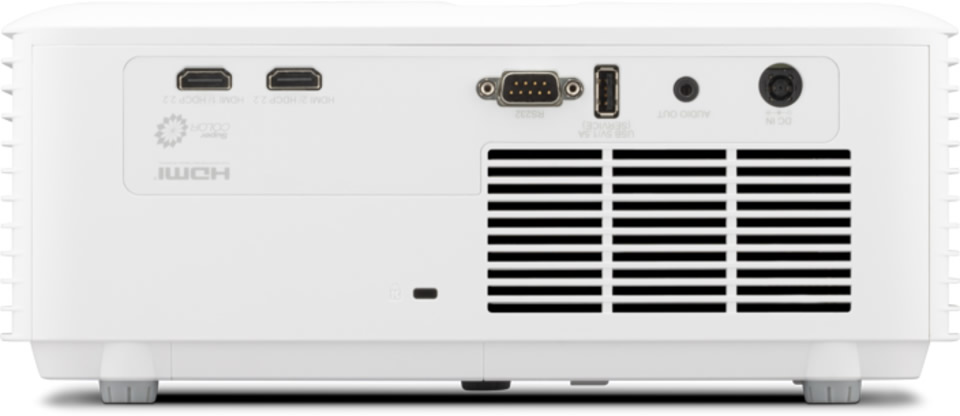

Rear Panel
